High Voltage 15V and 110-240V Powered Waterproof Portable Security Electric Fence Energizer 10Joule for Horses
- Model
- HPS1000
Item specifics
- Warranty
- 2 years
- Output energy
- 10J
- Power source
- 15V
Review
Description
- Features
- parameter
- video
- download
- Product Composition
- Installation details
- Various Models

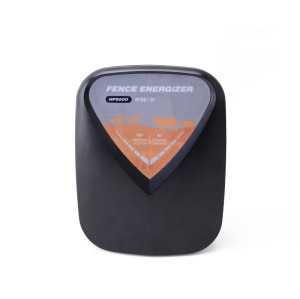

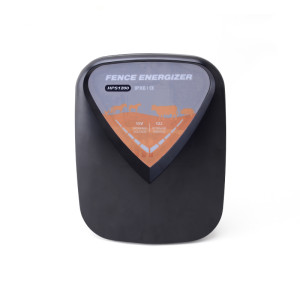

Electric Fence Energizer
Electric fence energizer takes in electrical energy from an outside source (either a 110V~240V outlet or a battery) and then pushes the energy out through the fence in very brief pulses. When an animal touches the energized wires, the resulting shock deters the animal from challenging the fence again.
HPS offer 3.5J/4.8J/6J/8J/10J/12J
HPS offer 3.5J/4.8J/6J/8J/10J/12J
(AC/AC&DC/SOLAR).
Features
- Waterproof (IPX6)
- Pulse indictor
- High voltage circuit protection
- Simple and quick to install
- CE&ROHS certification
- 2 year warranty
Parameter
Video
Product Installation Video
The HPS Fence's electric fence energizer is for containment of sheep, poultry, the exclusion of wild predators and special applications. A fence energizer takes in electrical energy from an outside source (either a 110V outlet or a battery) and then pushes the energy out through the fence in very brief pulses.
Download

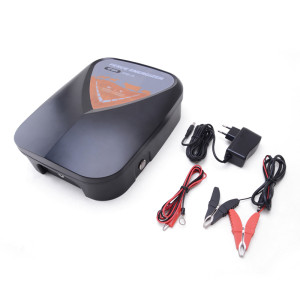

Product Composition
- 1 1x Energizer
- 21x Adapter
- 31x Battery wires with large crocodile clips
- 41x Earth connection cable with alligator clip
- 51x Earth Stake
Installation Details
Comparison Of Various Models
|
Item
|
Input Energy
|
Power Source
|
Peak voltage |
Average Current
|
Max. Current | Output Energy | Average Power | Max. Distance |
|
HPS350
|
3.5J
|
110V-240V / 12V
|
9000V |
300mA
|
1.2A | 2.1J | 3.6W | 30KM |
HPS480 | 4.8J | 110V-240V / 12V | 9000V | 450mA | 1.2A | 2.8J | 5.4W | 45KM |
HPS600 | 6J | 110V-240V / 15V | 10000V | 450mA | 1.2A | 3.6J | 6.75W | 60KM |
|
HPS800
|
8J
|
110V-240V / 15V |
10000V |
500mA
|
1.2A | 4.8J | 7.5W | 80KM |
|
HPS1000
|
10J
|
110V-240V / 15V
|
10000V |
550mA
|
1.2A | 6.0J | 8.25W | 100KM |
HPS1200 | 12J | 110V-240V / 15V | 10000V | 650mA | 1.2A | 7.2J | 9.75W | 120KM |
