High Voltage 15 V and 110-240V Powered with LCD Display 120km 12J Electric Fence Energizer for Farm
- Model
- HPS1200NS
Item specifics
- Warranty
- 2 years
- Output energy
- 12J
- Power source
- 15V/110V-240V
Review
Description

- Features
- parameter
- video
- download
- Product Composition
- Installation details
- Various Models
Electric Fence Energizer
Electric fence energizer takes in electrical energy from an outside source (either a 110V~240V outlet or a battery) and then pushes the energy out through the fence in very brief pulses. When an animal touches the energized wires, the resulting shock deters the animal from challenging the fence again.
HPS offer 2J/3.5J/4.8J/6J/8J/10J/12J
HPS offer 2J/3.5J/4.8J/6J/8J/10J/12J
(AC/AC&DC/SOLAR).
Features
- Waterproof (IPX6)
- Pulse indictor
- High voltage circuit protection
- Simple and quick to install
- CE&ROHS certification
- 2 year warranty

Parameter
Video
Product Installation Video
The HPS Fence's electric fence energizer is for containment of sheep, poultry, the exclusion of wild predators and special applications. A fence energizer takes in electrical energy from an outside source (either a 110V outlet or a battery) and then pushes the energy out through the fence in very brief pulses.
Download

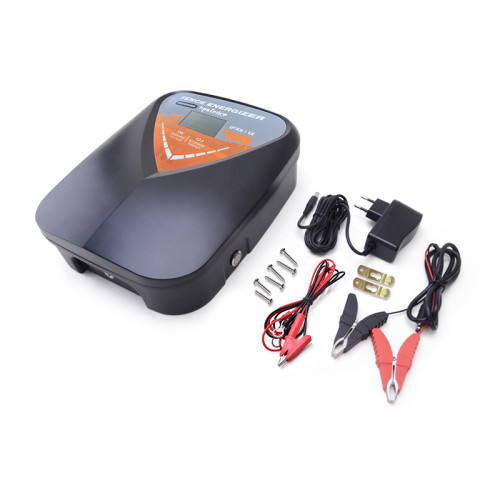

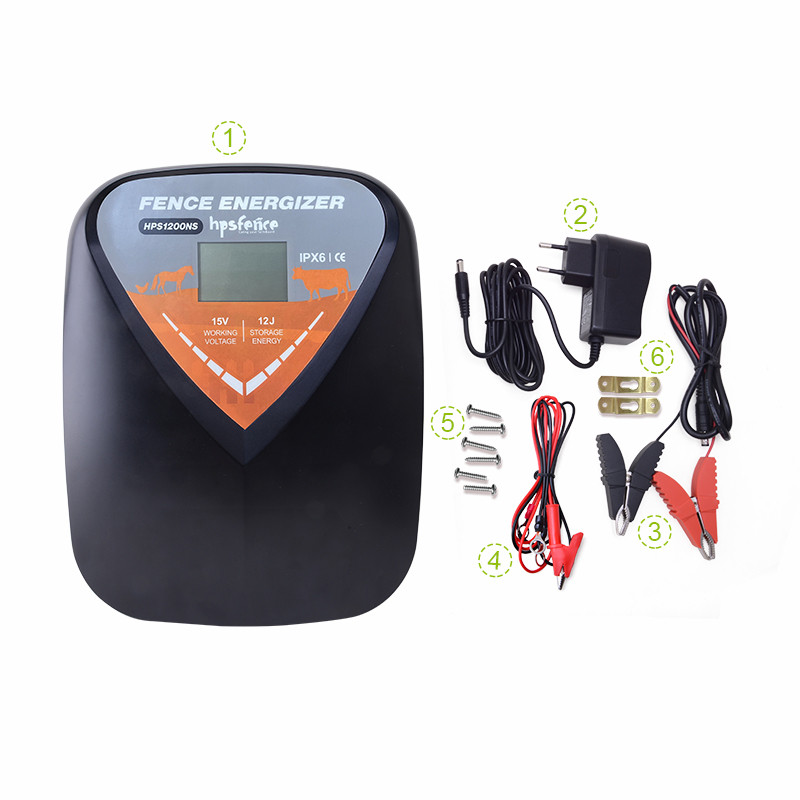

Product Composition
- 1 1x Energizer
- 21x Adapter
- 31x Battery wires with large crocodile clips
- 41x Earth connection cable with alligator clip
- 56x Screws with 2 brackets

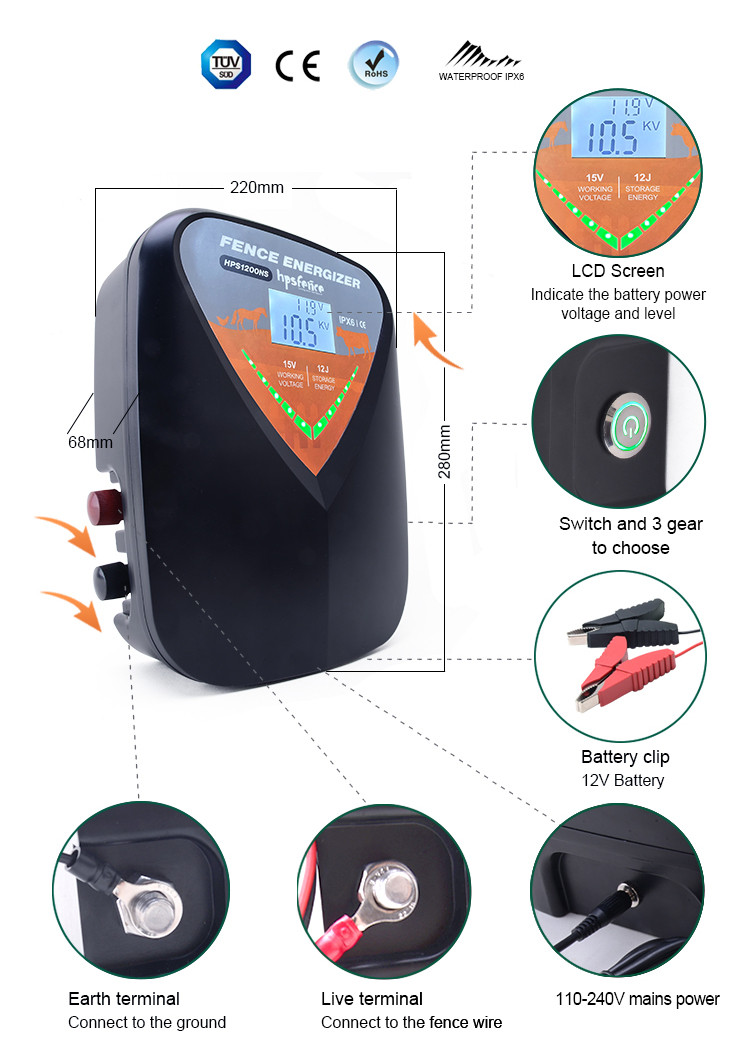

Installation Details

Comparison Of Various Models
Item
|
Input Energy
|
Power Source
|
Peak voltage |
Average Current
|
Max. Current | Output Energy | Average Power | Max. Distance |
HPS200N | 2J | 110V-240V / 12V | 9000V | 180mA | 1.2A | 1.2J | 2.2W | 20KM |
HPS350N
|
3.5J
|
110V-240V / 12V
|
9000V |
300mA
|
1.2A | 2.1J | 3.6W | 30KM |
HPS480N | 4.8J | 110V-240V / 12V | 9000V | 450mA | 1.2A | 2.8J | 5.4W | 45KM |
HPS600N | 6J | 110V-240V / 15V | 10000V | 450mA | 1.2A | 3.6J | 6.75W | 60KM |
HPS800N
|
8J
|
110V-240V / 15V |
10000V |
500mA
|
1.2A | 4.8J | 7.5W | 80KM |
HPS1000N
|
10J
|
110V-240V / 15V
|
10000V |
550mA
|
1.2A | 6.0J | 8.25W | 100KM |
HPS1200N | 12J | 110V-240V / 15V | 10000V | 650mA | 1.2A | 7.2J | 9.75W | 120KM |
